A-B 1326AB-B720F-S2K7L motor

Description

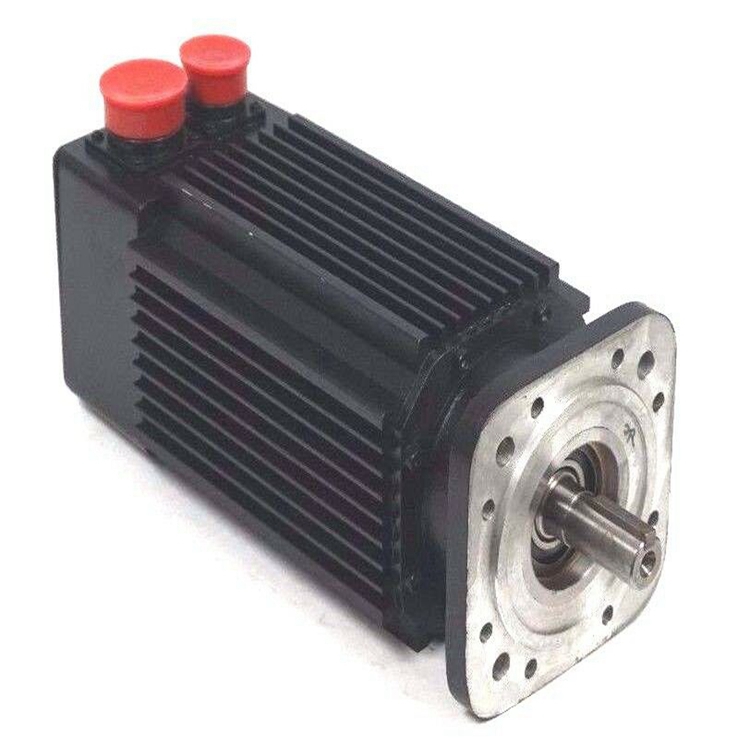

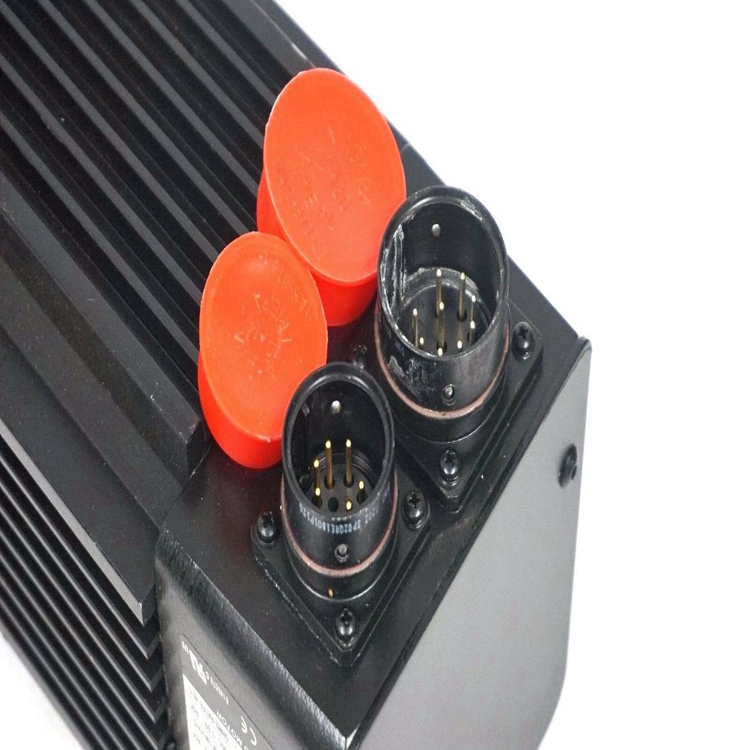

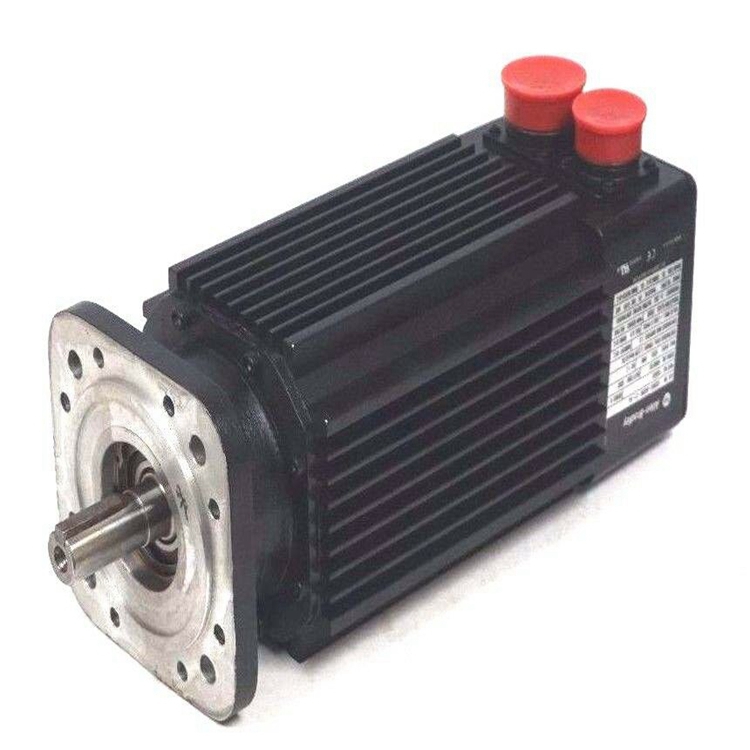

The 1326AB-B720F-S2K7L motor is an Allen Bradley brand communication servo motor.



Here are some of the features of this motor:



Peak stall torque: The peak stall torque of the AM50 module is 38 Nm, while the peak stall torque of the AM75 module is 56 Nm.

Rated continuous stall current: The rated continuous stall current of both AM50 module and AM75 module is 27.5 amperes.

Peak stall current: The peak stall current of the AM50 module is 33.2 amperes, while the peak stall current of the AM75 module is 50 amperes.

Electrical time constant: The electrical time constant of the 1326AB-B720F-S2K7L motor is 9.5 milliseconds, and the mechanical time constant is 6.6 milliseconds.

Environmental temperature rating: The peak ambient temperature rating of the 1326AB-B720F-S2K7L motor is 40 degrees Celsius (104 degrees Fahrenheit).

Thermal time constant: The thermal time constant of the 1326AB-B720F-S2K7L motor is 60 minutes.

Insulation level: The insulation level of the 1326AB-B720F-S2K7L motor is H level.

Torque constant: At 25 degrees Celsius, the torque constant of this motor is 1.37 Nm and the inductance is 4.15 Millihenry.

Weight: Approximately 138 pounds.
