Description

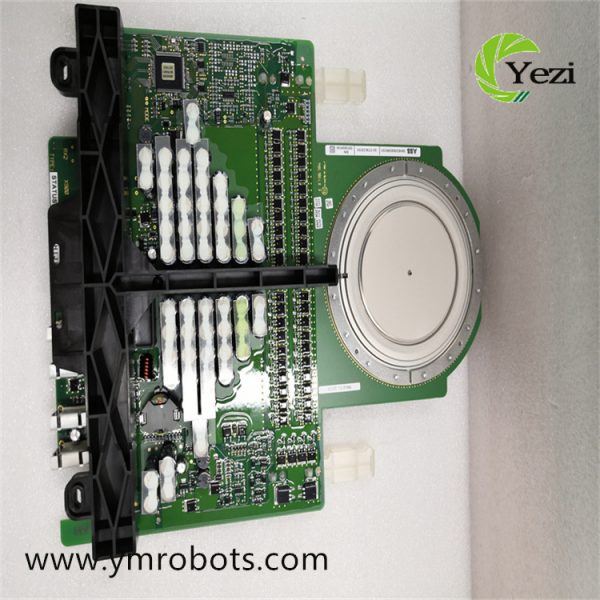

ABB 5SHY4045L0006 3BHB030310R0001 is an IGCT(Insulated Gate Bipolar Transistor) high voltage inverter card. It is mainly used to drive DC brush servo motors and is suitable for harsh industrial environments.
In power electronics applications, especially in frequency converters and drive systems, 5SHY4045L0006 has a wide range of applications. For example, it can be used in AC motor drive systems to achieve adjustable speed and controllable operation. At the same time, it can also be used to improve the stability and control of the power grid, as well as to convert electrical energy from AC power to direct current for high voltage direct current (HVDC) transmission systems.
The 5SHY4045L0006 driver operates from 18VDC to 80VDC with a maximum continuous current of 20A. It supports a variety of operation modes, such as network mode, +/-10V analog signal mode, pulse/direction mode, independent operation mode, etc., and CAN be connected with PC, touch screen, PLC and other upper computers through RS232/RS485/CAN bus.
5SHY4045L0006 also has a variety of control modes such as position control mode, speed control mode and current (torque) control mode, and supports control parameter saving and alarm history saving functions. Its independent motion control program can be written in the MotionStudio software and downloaded to the drive to run automatically, without the need for a host computer.
In order to ensure stability and reliability, 5SHY4045L0006 also has temperature protection, overcurrent, overvoltage, undervoltage protection, I2T current limitation and other functions.
