Description

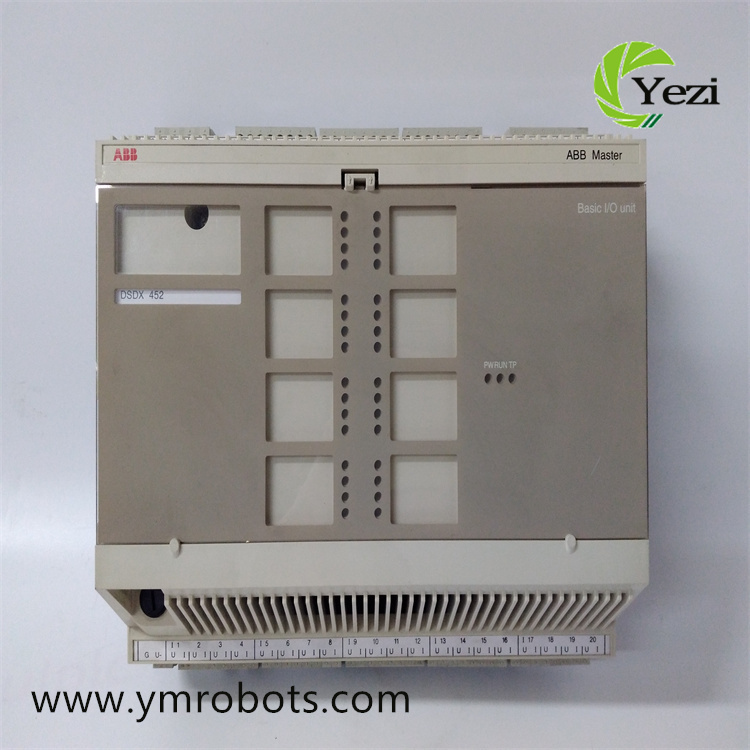

The DSDX452 5716075-P basic I/O unit is an important component in industrial control and automation applications. Its compact design, DIN rail mounting and cost performance make it the first choice for engineers, technicians and system integrators who need a reliable and versatile I/O interface solution.
Main functions and features
Remote input and output: The device is capable of receiving and sending signals remotely to achieve data exchange and control between devices.
Modular design: easy to install, maintain and upgrade, users can choose the right module according to the actual needs for configuration.
High reliability: The use of high-quality components and advanced production processes to ensure that the equipment can still run stably in harsh environments.
Strong scalability: Support a variety of expansion modules and interfaces to meet the needs of industrial automation of different scales and complexity.
Intelligent management: It integrates intelligent control algorithm and monitoring function to realize automatic management and fault diagnosis of equipment.
Technical parameter
Input voltage range: Usually 12-48VDC, but the specific range may vary depending on the product model or application scenario.
Output voltage/current: The output voltage can reach 5VDC, the output current can reach 10A, the specific value is subject to the product manual.
Efficiency: greater than 90%, indicating that the device has a high efficiency in the energy conversion process.
Size and weight: Approximately 170 mm x 105 mm x 32 mm (or depending on the information provided by the supplier) and 120 grams (or heavier) for easy installation and portability.
Operating environment: The operating temperature range is usually -20°C to +50°C (or higher), and the storage temperature range may be larger to accommodate different operating environments.
Level of protection: Some suppliers may offer products with high levels of protection such as IP67 to ensure proper operation of equipment in harsh environments
Applications:
The DSDX452 5716075-P basic I/O unit is used in a variety of industrial applications that require a reliable and cost-effective I/O interface, including
Machine control system: Monitor machine operation, such as start/stop, speed control and security interlocking.
Process control systems: Interface with sensors and actuators in industrial processes such as temperature control, pressure control and flow control.
Building automation systems: Control lighting, HVAC and other building systems.
Test and measurement systems: Obtain data from sensors and provide control signals to test equipment.
Data acquisition systems collect data from a variety of sources for monitoring and analysis.
Consideration factor
System compatibility: Ensure that the DSDX452 5716075-P is compatible with the specific S400 I/O system being used.
Signal adjustment: Properly adjust the input signal to match the voltage and current range of the device.
Output protection: Use appropriate output protection devices, such as relays or fuses, to protect connected devices from damage.
Wiring and connection: Follow proper electrical wiring practices and comply with local codes and standards.
Programming and configuration: Use the appropriate programming software or configuration tool to set the functions and parameters of the I/O device.
