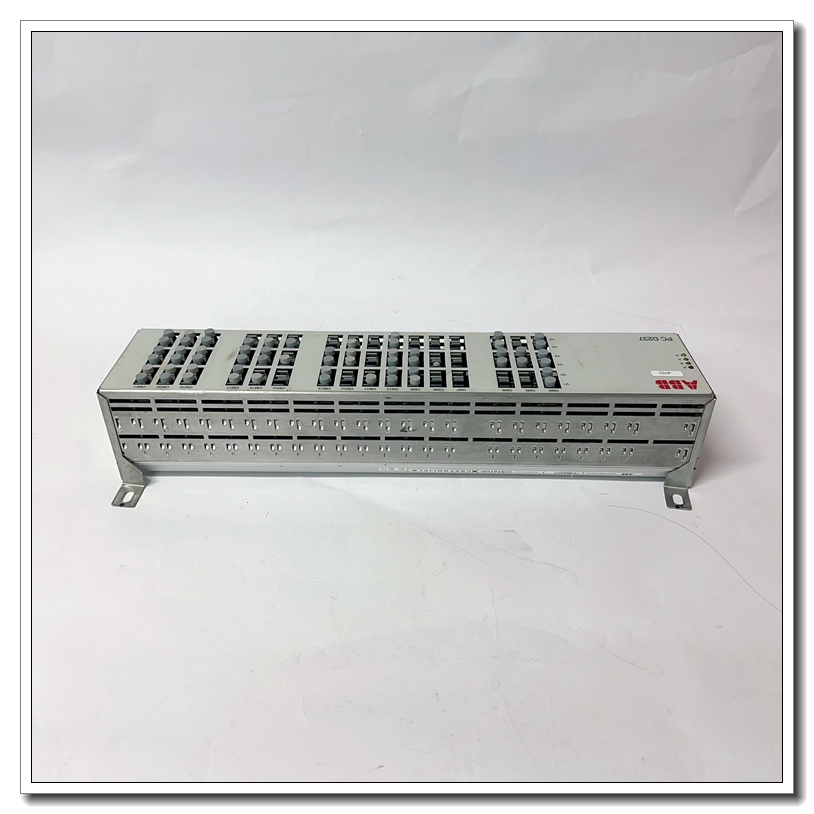

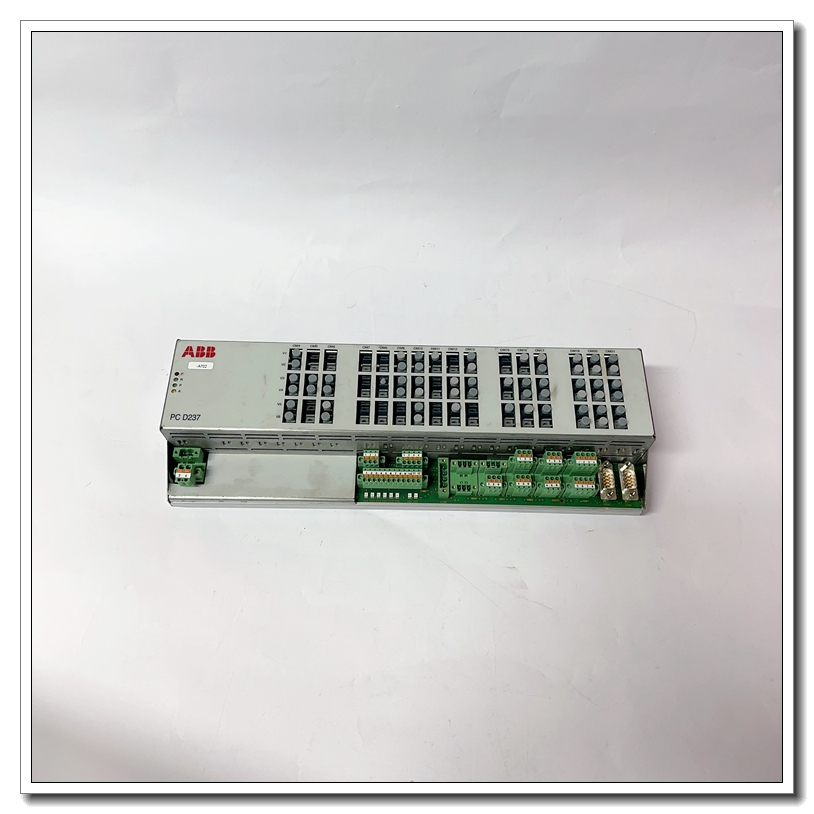

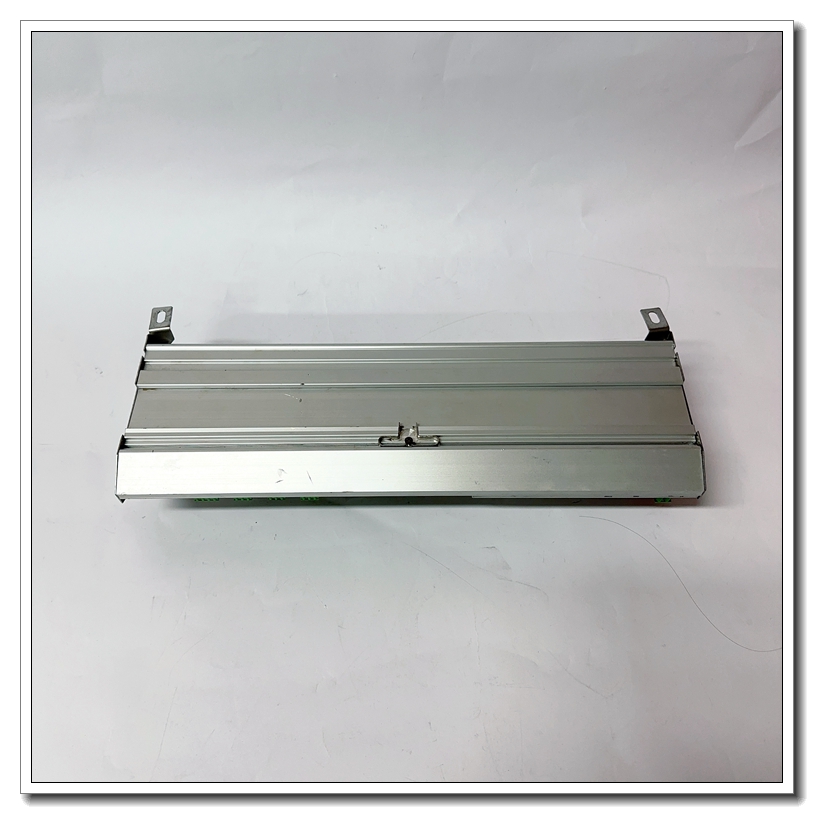

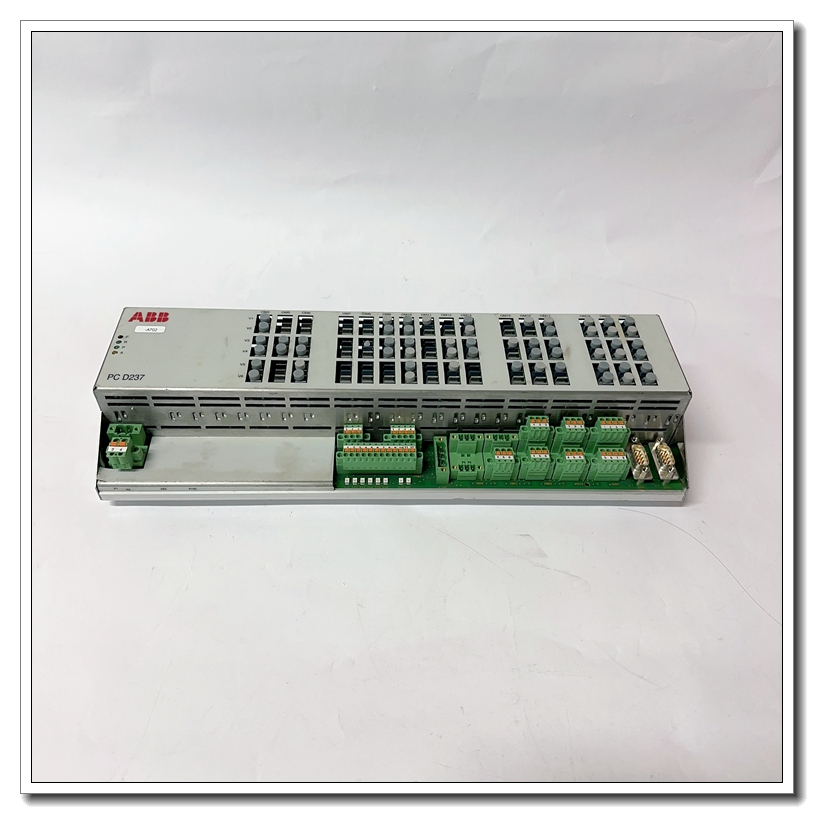

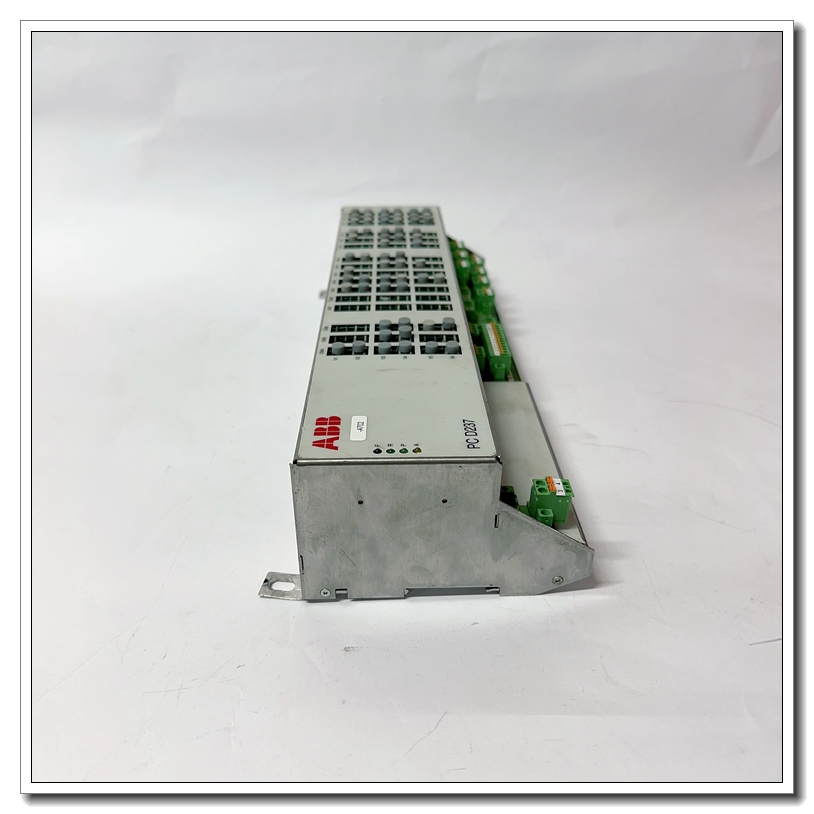

ABB PCD237A101 controller

Description

The ABB excitation controller module PCD237A101 has four USB ports, two of which are connected to the front panel P2. The USB functions supported by this module include isochronous data transmission, asynchronous messaging, self identification and configuration of peripheral devices, and dynamic (hot) attachments. In addition, ABB PCD237A101 controller also has other features, such as supported VMEbus single board computers and backplane interfaces.
The characteristics of ABB’s controller mainly include the following points:
High density configuration: Some models of ABB controllers, such as PCD237A101, have a high-density relay configuration that can control multiple relay channels simultaneously. This supports multiple independent relay groups, each group can contain multiple relay channels to meet complex testing requirements.
Fast switching time: ABB controllers have fast relay switching time and can complete channel switching at the microsecond level. This helps to improve testing speed and accuracy, especially in applications that require quick switching of multiple signal paths.
High voltage and high current capability: ABB controllers support relay switches for high voltage and high current, suitable for controlling various electrical signals. It can handle high voltage and current loads and is suitable for applications that require high power.
