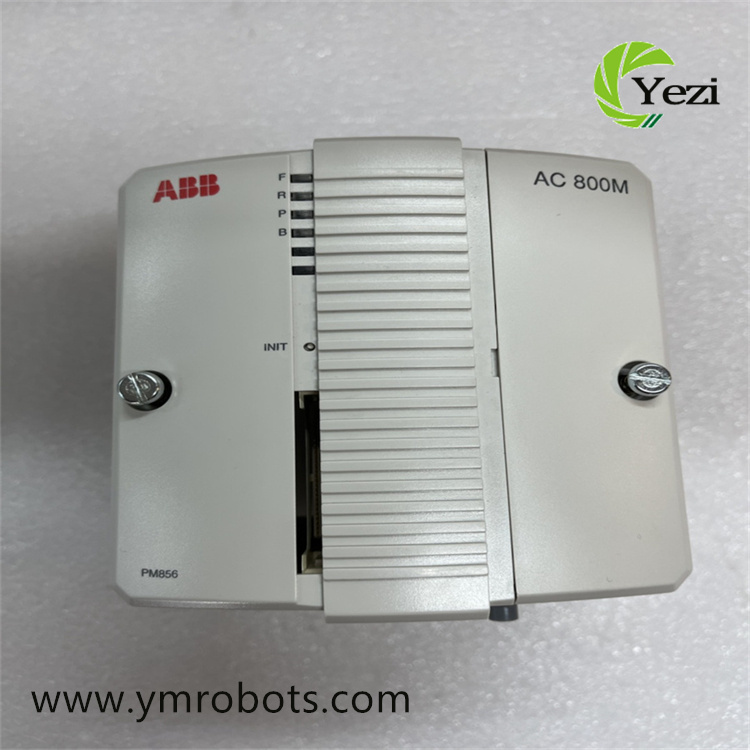

ABB PM856K01 3BSE018104R1 Frequency changer

Description

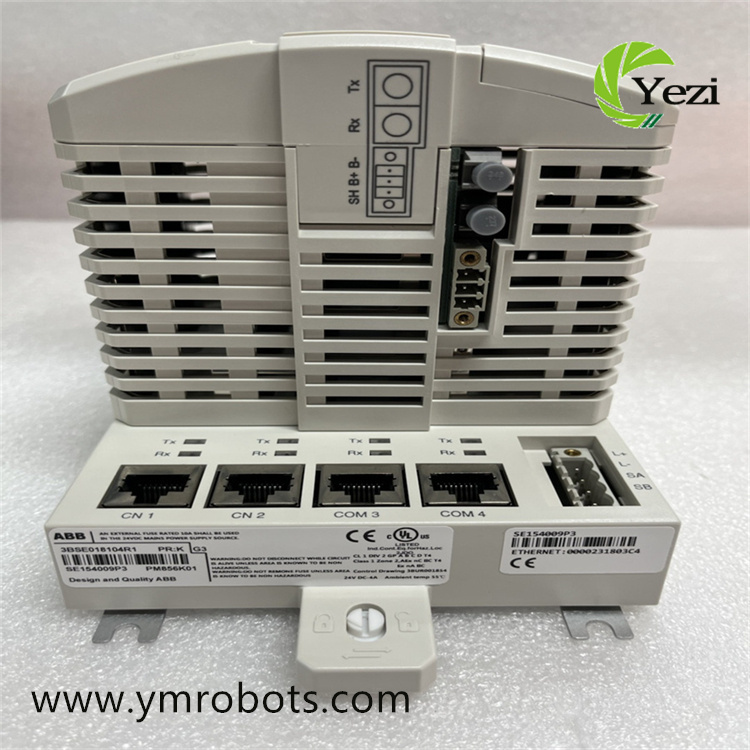

The baseplate of the ABB PM856K01 3BSE018104R1 Frequency changer has two RJ45 Ethernet ports (CN1 and CN2) and two RJ45 serial ports (COM3 and COM4) for connecting to the control network. One of the serial ports

(COM3) is the RS-232C port with the modem control signal, while the other port (COM4) is isolated and used to connect to the configuration tool.

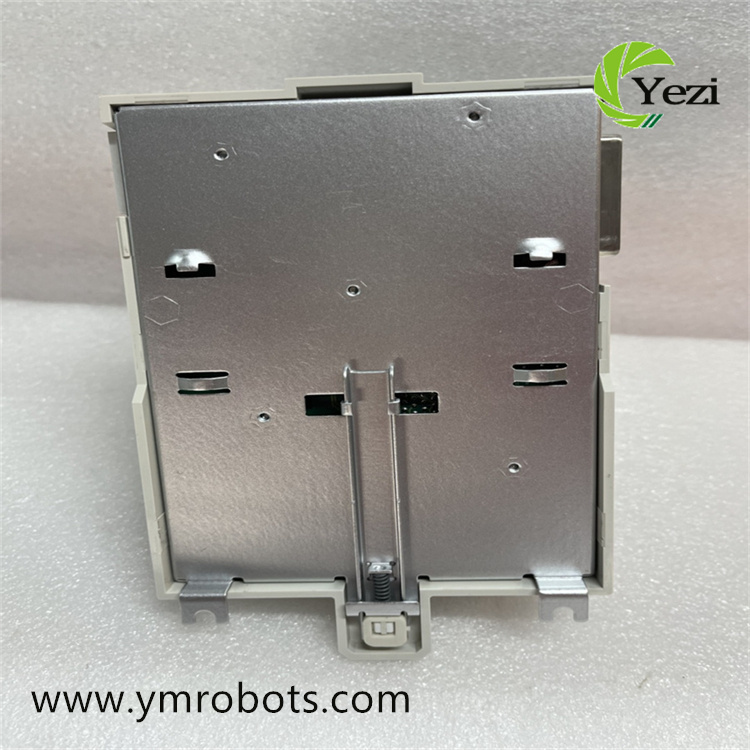

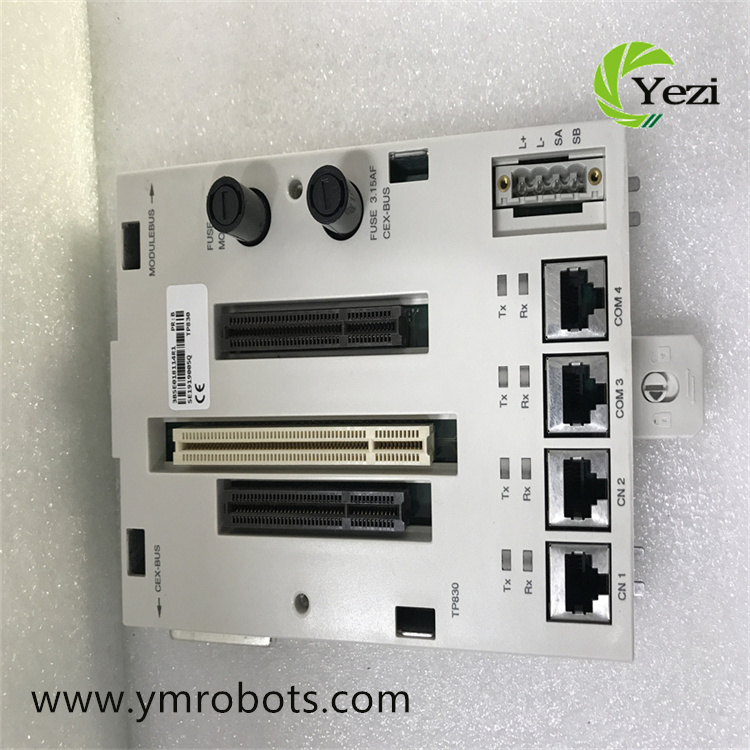

Simple DIN rail installation/removal procedure using unique sliding and locking mechanisms. All baseboards have a unique Ethernet address that provides a hardware identity for each CPU. This address can be found on the Ethernet address label on the TP830 baseboard.

Characteristics and advantages

. Reliable and simple troubleshooting program. Modular, allowing for gradual expansion

.IP20 protection grade, no case required

. The controller can be configured with an 80OxA control generator. The controller has full EMC certification

. Hardware based on the best communication connectivity standards (Ethernet, PROFIBUS DP, etc.)

The PM856K01 is part of ABB’s PowerFlex 755E series of converters with the following features:

Efficient motor control: The PM856K01 uses advanced motor control algorithms such as vector control and direct torque control to provide superior motor control performance.

Wide speed range: Has a wide speed range to meet the needs of different loads.

Strong overload capacity: Has a strong overload capacity, can withstand large load impact.

Flexible interface and communication: provides a variety of different interfaces and communication protocols to facilitate connection and communication with other devices.
