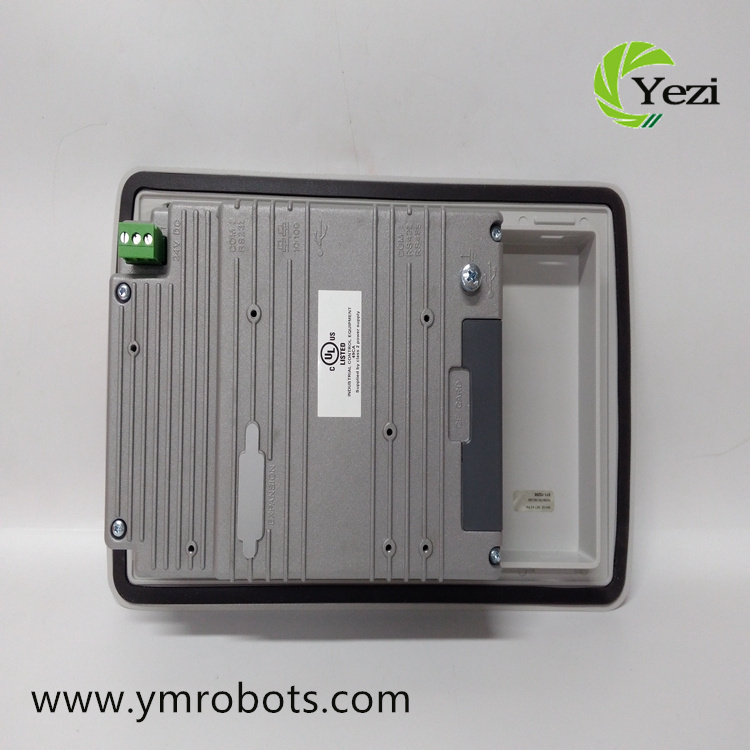

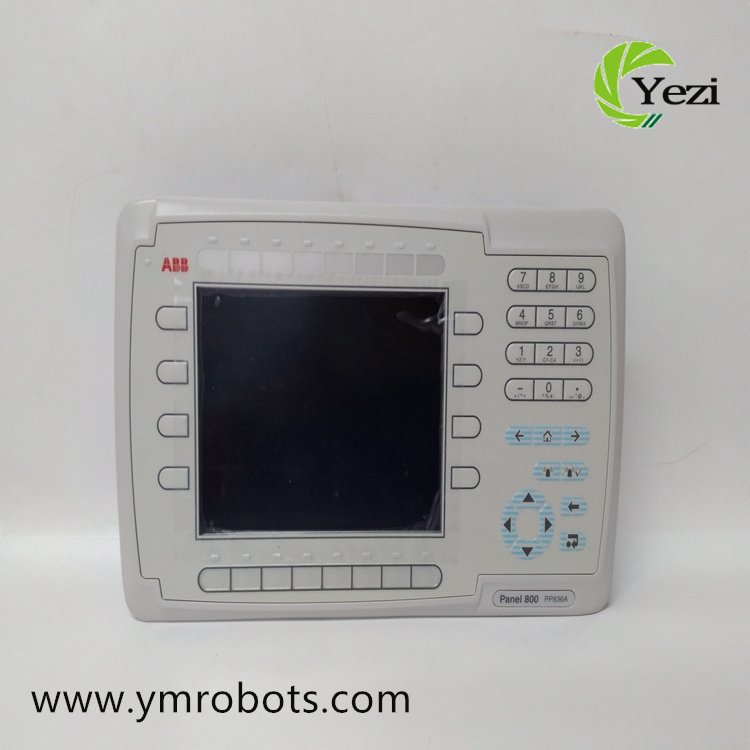

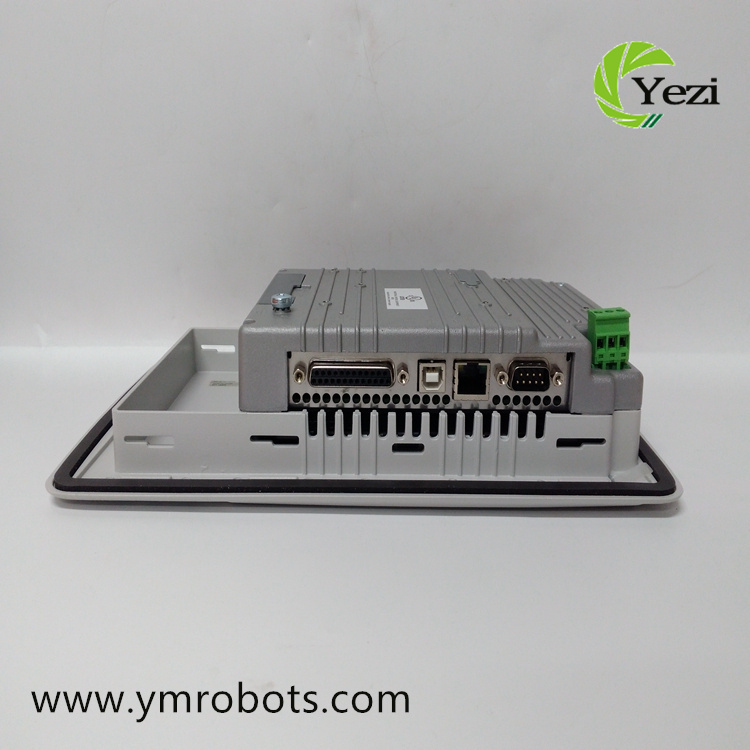

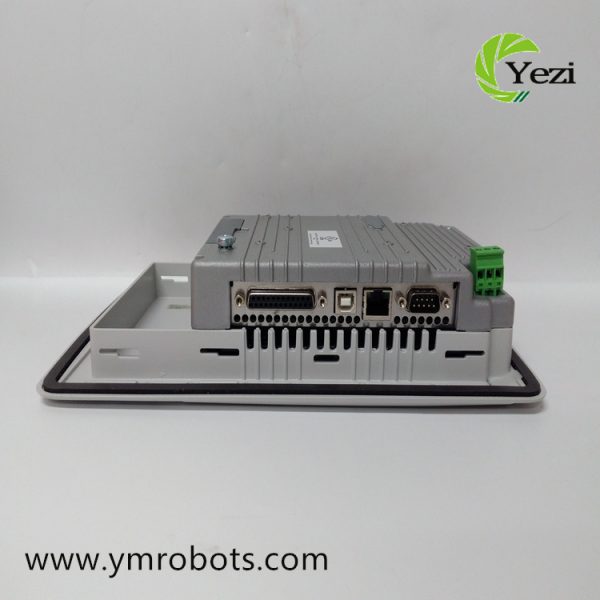

ABB PP836A 3BSE042237R2 Digital signal processor

Description

Product Introduction:

1, using the latest technology DSP chip (digital signal processor), with speed, position, torque three closed-loop control.

2, support torque mode, external speed analog instruction, speed register instruction, position pulse mode.

3, position pulse mode supports 5V-24V pulse without external resistance.

4, support signal I/O position programmable reconfiguration.

5, the analog speed instruction can be 13BIT, that is, the analog speed instruction resolution. (Usually 12BIT)

6, a variety of intelligent monitoring functions and exquisite operation panel, support parameter adjustment, setting, parameter data and fault code acquisition, convenient motor debugging and fault diagnosis.

7, with general MODBUS communication (485 communication), simple wiring, can be set up LAN, support the host computer to read and write the data of the drive in the network.

8. Independently developed real-time monitoring software for servo operation status, using USB to communicate with PC to monitor motor voltage, current, encoder signal, speed instruction, speed feedback and other waveforms in real time. Convenient system parameter analysis, debugging and optimization.

9, complete protection functions: over current, over voltage, under voltage, overload, main circuit abnormal, phase missing, encoder abnormal, CPU abnormal, parameter abnormal, etc.

10, all metal aluminum shell, increase the shielding effect, improve anti-interference performance.

11. Special servo can be customized according to customer functional requirements.
