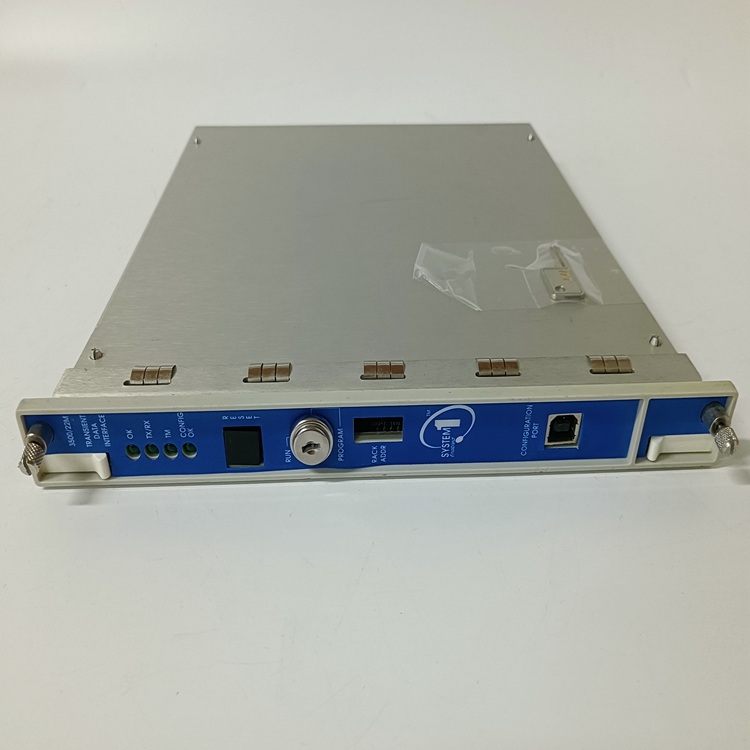

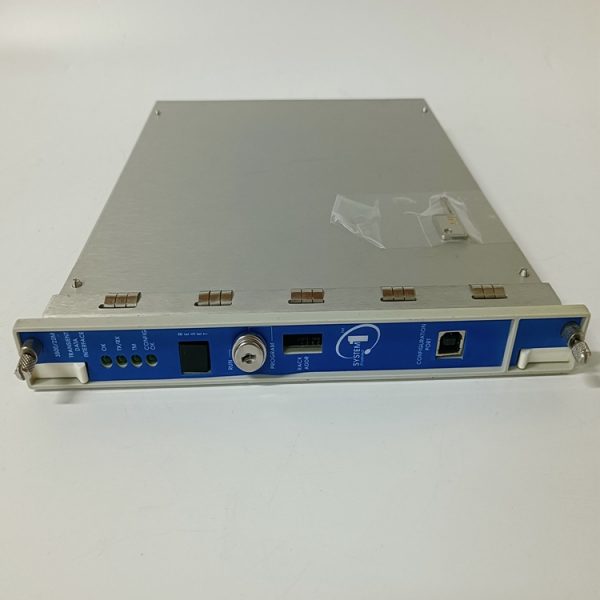

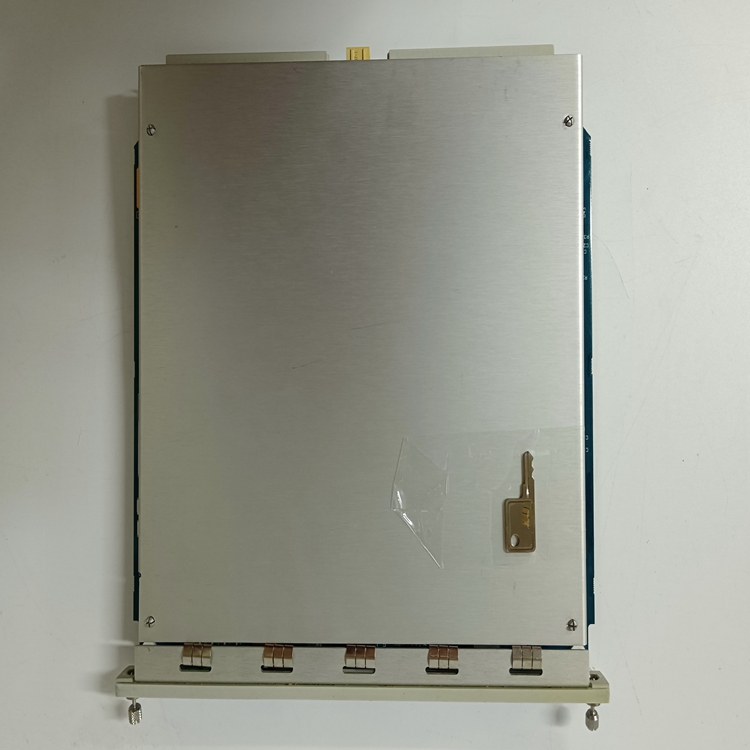

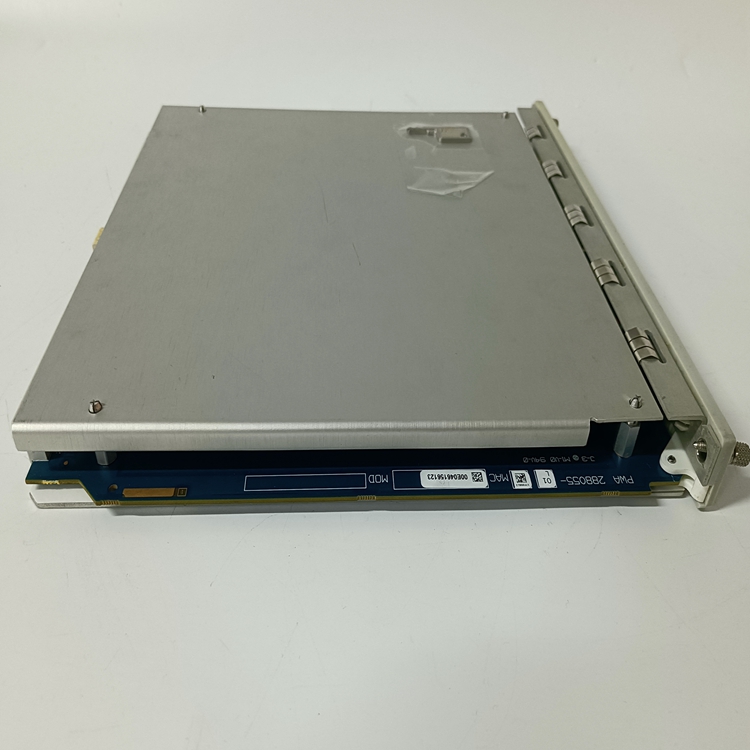

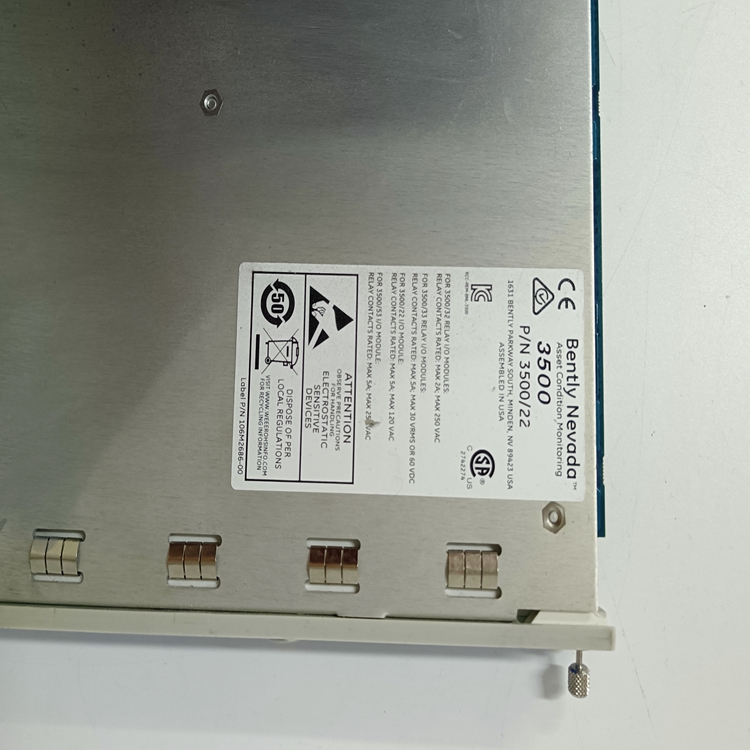

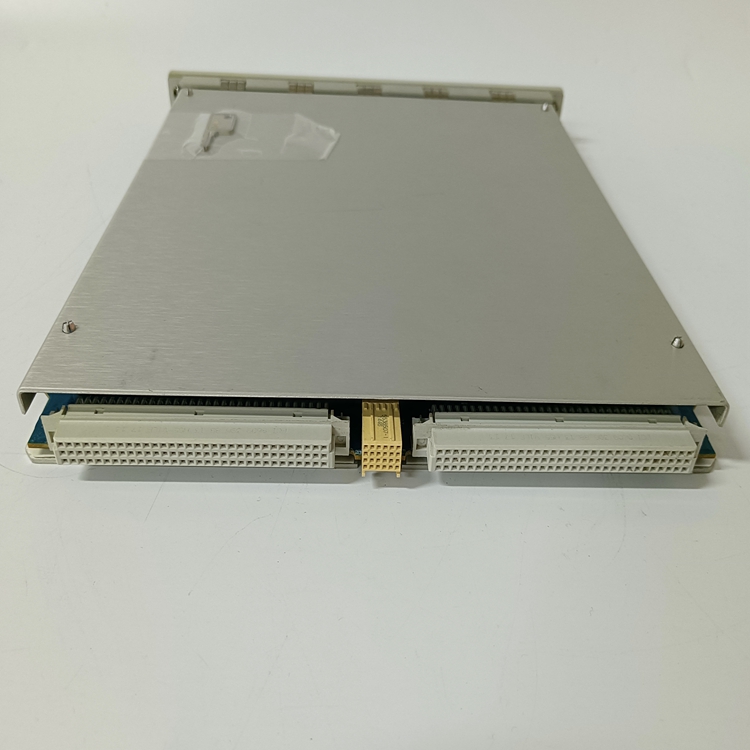

BENTLY 3500/22M Transient Data Interface Module

Description

BENTLY 3500/22M is Bently Nevada’s transient data interface used for linking the 3500 monitoring system with Bently Nevada System 1TM mechanical management software. It combines the functions of the 3500/20 Framework Interface Module (RIM) with communication processors such as TDXnet.

In the 3500 framework, the BENTLY 3500/22M transient data interface is located in a slot next to the power supply, used to continuously collect steady-state and transient waveform data, and transmit the data to the main computer software through Ethernet. It has standard static data collection capabilities, but uses optional channel enabled disks and can also collect transient or dynamic data. Although BENTLY 3500/22M is a universal interface of the framework, it is not a critical component of the monitoring channel and does not affect the correct and routine operation of the entire monitoring system.
