Bently Nevada 3500/05-01-02-00-00-01 System rack

Description

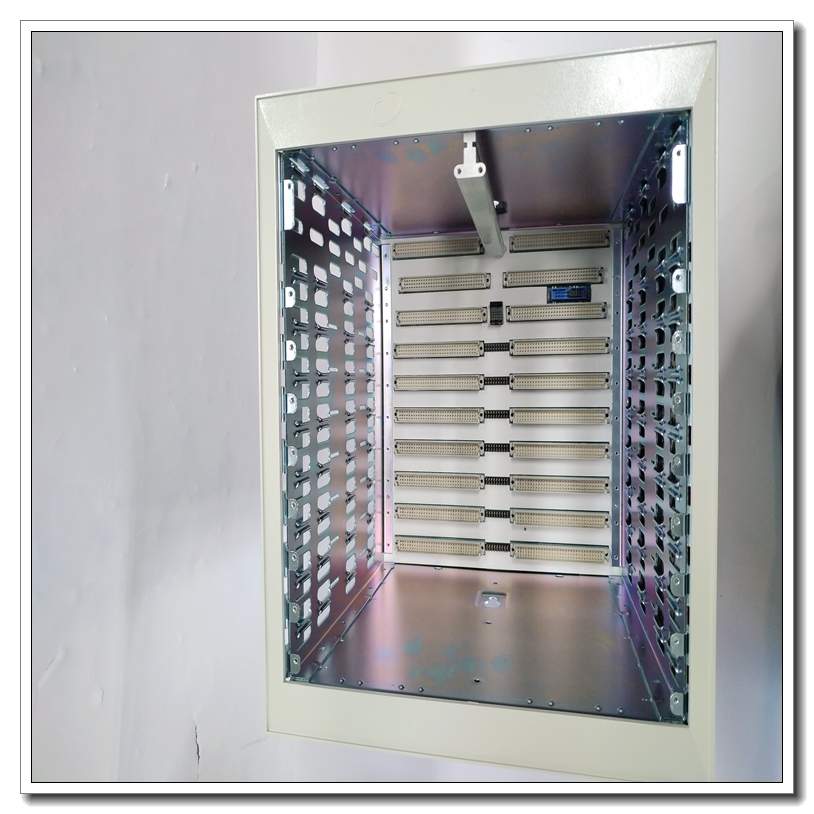

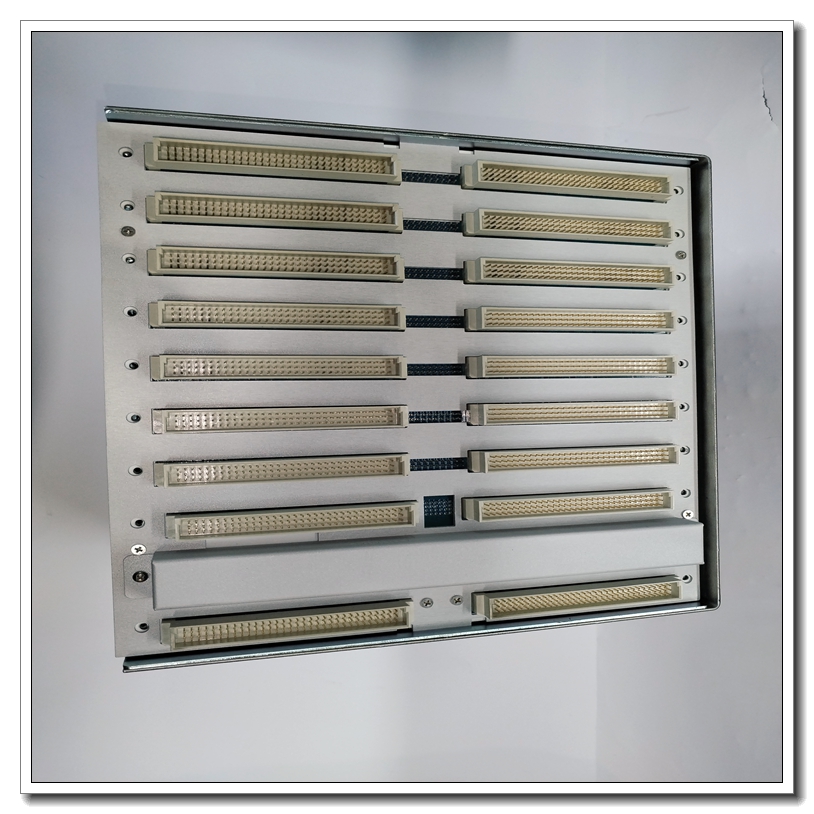

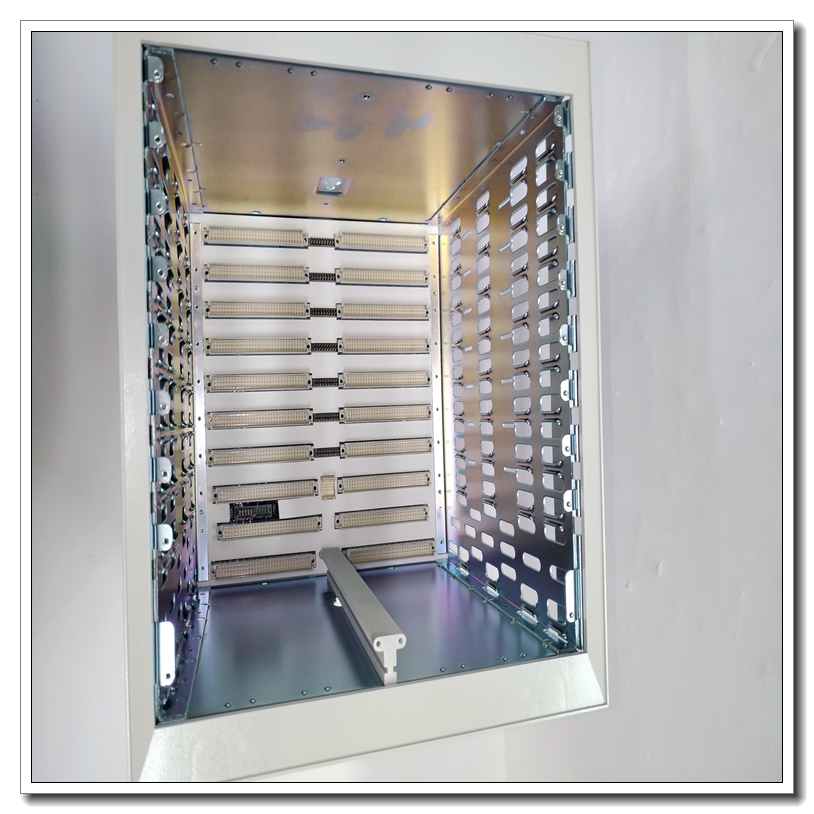

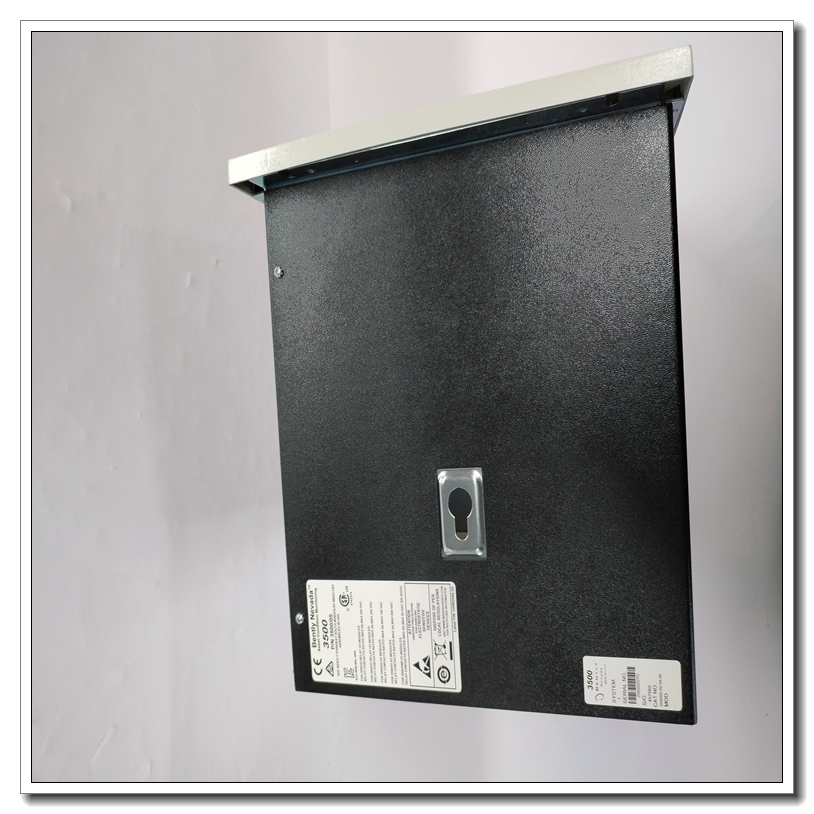

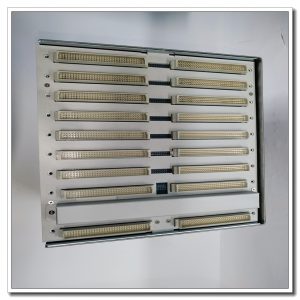

DescriptionUse the 3500 System rack to mount all 3500 monitor modulesand power supplies.  The rack allows you to place 3500modules near one another, enabling them to easilycommunicate, and to mount power supplies necessary todistribute power to each module.3500 racks are available in two sizes:Full-size rack. 19-inch EIA rack with 14 available module slots.Mini-rack. 12-inch rack with seven available module slots.You can order 3500 racks in three formats:Panel mount. This rack format mounts to rectangular cutouts in panels, and secures to the panel using clampssupplied with the rack.  Wiring connections and I/O modulesare accessible from the rear of the rack.Rack mount. This rack format mounts the 3500 Rack on 19-inch EIA rails.  Wiring connections and I/O modules areaccessible from the rear of the rack.Bulkhead mount. This rack format mounts the rack against awall or panel when it is not possible to access the rear of therack.  Wiring connections and I/O modules are accessiblefrom the front of the rack.  The 3500/05 Mini-Rack is notavailable in this format.The power supplies and rack interface module must occupythe far-left rack positions.  The remaining 14 rack positions(seven rack positions for the mini-rack) are available for anycombination of modules.
