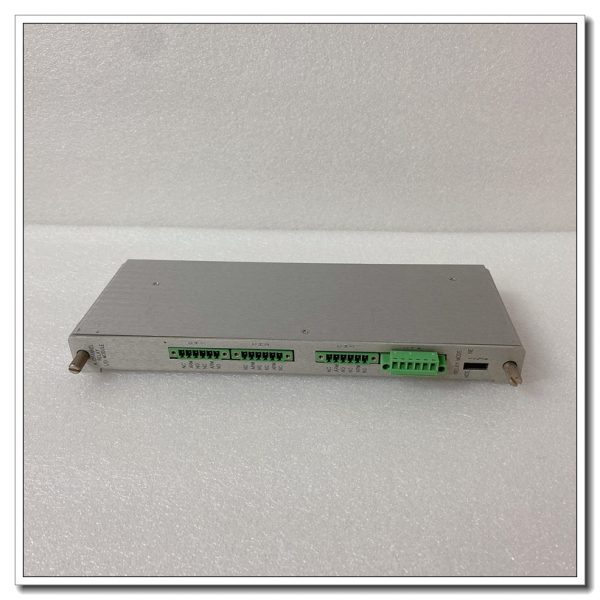

Bently Nevada 3500/32 125720-01 Rear card

Description

3500/32 4 Channel Relay Module
DescriptionThe 4-Channel Relay Module is a full-height module that provides four relayoutputs. Any number of 4-Channel Relay Modules can be placed in any of theslots to the right of the Rack Interface Module. Each output of the 4-ChannelRelay Module can be independently programmed to perform needed votinglogic.Each relay utilized on the 4-Channel Relay Module includes “Alarm Drive Logic”.The Alarm Drive Logic is programmed using AND and OR logic, and can utilizealarming inputs (alerts and dangers) from any monitor channel or anycombination of monitor channels in the rack. This Alarm Drive Logicprogramming uses the 3500 Rack Configuration Software to meet the specificneeds of the application.Note: Triple Modular Redundant (TMR) applications require the use of the3500/34 TMR Relay Module.
