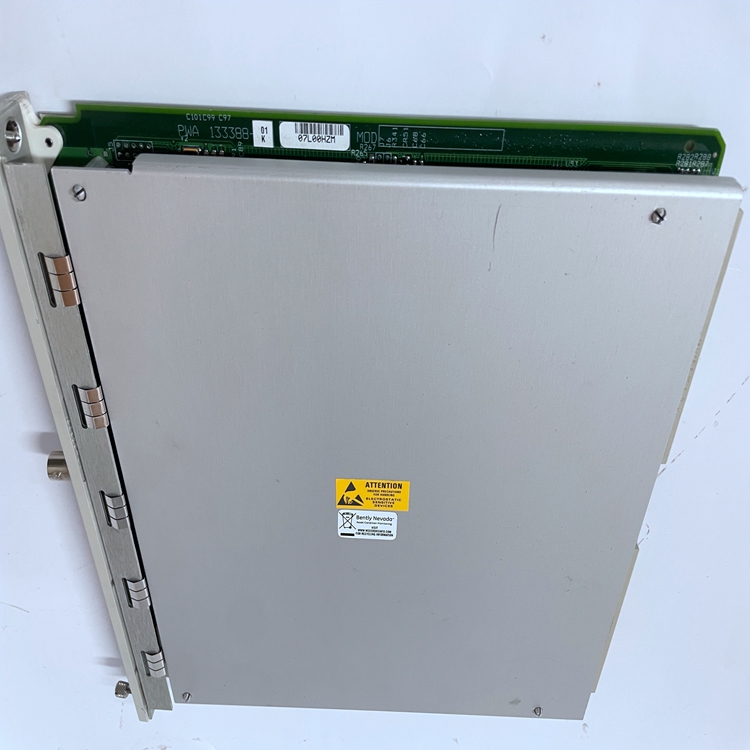

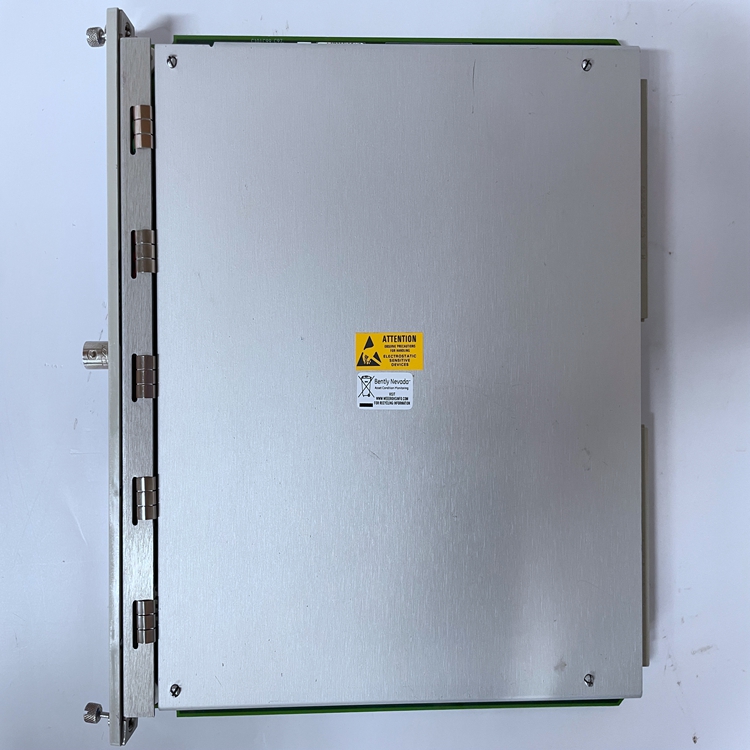

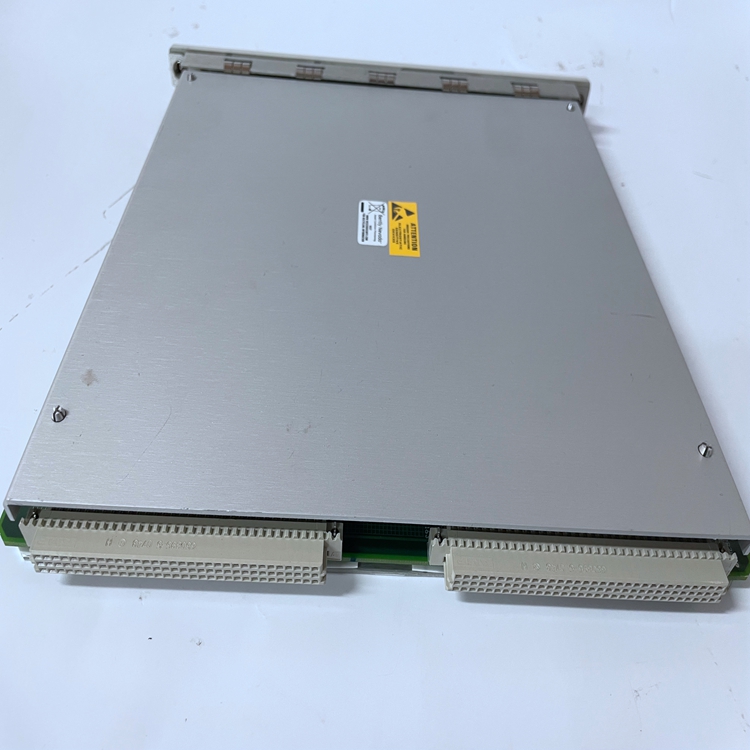

Bently Nevada 3500/53 Electronic Overspeed Detection System

Description

3500/53 Electronic Overspeed Detection System

Bently Nevada’s Electronic Overspeed Detection Systemfor the 3500 Series Machinery Detection System providesa highly reliable, fast response, redundant tachometersystem intended specifically for use as part of anoverspeed protection system. It is designed to meet therequirements of American Petroleum Institute Standards670 and 612 pertaining to overspeed protection.3500/53 modules can be combined to form a 2-out-of-2 or2-out-of-3 (recommended) voting system.The use of redundant power supplies in a 3500 rackcontaining the Overspeed Detection System is required.

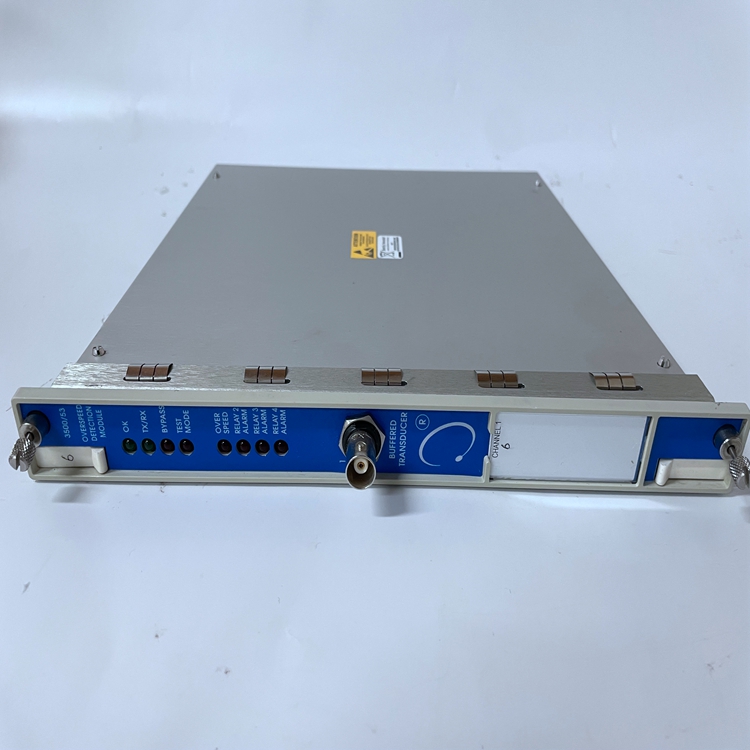

OutputsFront Panel LEDsOK LED: Indicates when the 3500/53Module is operating properly.TX/RX LED: Indicates when the 3500/53Module is communicating withother modules in the 3500 rack.Bypass LED: Indicates when the 3500/53Module is in Bypass Mode.Test Mode LED: Indicates when the 3500/53 is inTest Mode.
