Description

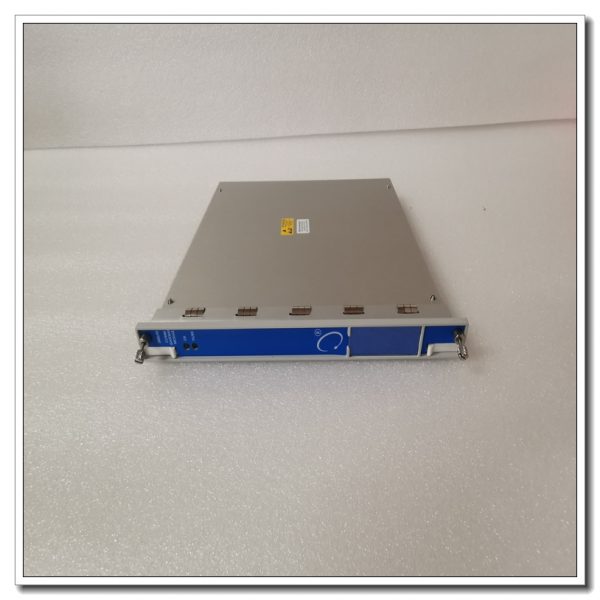

The 3500/92 Communication Gateway module provides extensivecommunication capabilities of all rack monitored values and statuses forintegration with process control and other automation systems using bothEthernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. Italso permits Ethernet communications with 3500 Rack Configuration Softwareand Data Acquisition Software.Supported protocols include:• Modicon® Modbus® protocol (via serial communications)• Modbus/TCP protocol (a variant of serial Modbus used for TCP/IPEthernet communications)• Proprietary Bently Nevada protocol (for communication with 3500 RackConfiguration and Data Acquisition Software packages)The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T starconfiguration Ethernet networks.The 3500/92 supports the communication interfaces, communication protocols,and other features from the original 3500/90 with the exception of the primaryvalue Modbus registers. The 3500/92 now has a Configurable Modbus RegisterUtility, which can provide the same functionality originally addressed by theprimary value Modbus registers.
