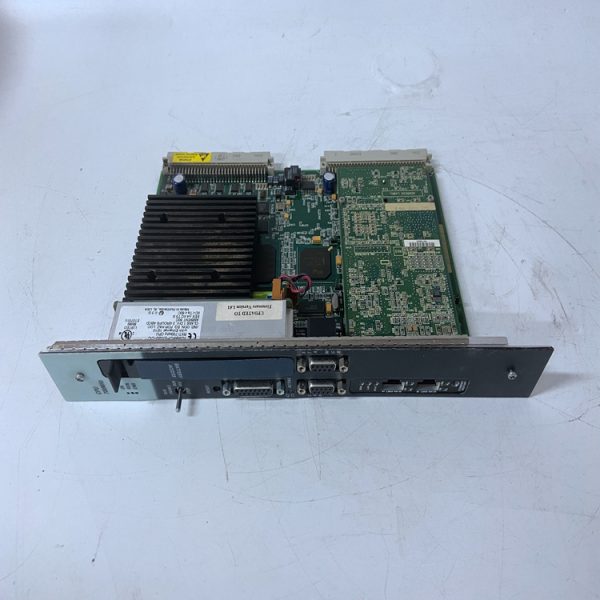

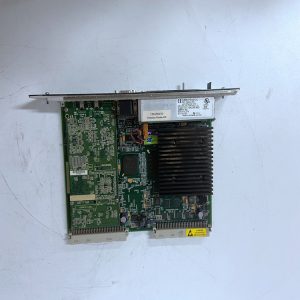

GE IC698CRE040 controller

Description

The RX7i CPUs are programmed and configured by the programming software to perform real timecontrol of machines, processes, and material handling systems. The CPU communicates with I/O andsmart option modules over a rack-mounted backplane using the VME64 Standard format. Itcommunicates with the programmer and HMI devices via the embedded Ethernet ports or a serial portusing SNP Slave protocol.CPE030: 600MHz Pentium-M microprocessor with 64 MB of user memory and 64 MB of user flashCPE040: 1800MHz Pentium-M microprocessor with 64 MB of user memory and 64 MB of user flashFeatures▪ Contains 64 Mbytes each of battery-backed user memory and non-volatile flash user memory foruser data (program, configuration, register data, and symbolic variable) storage.▪ Access to bulk memory via reference table %W.▪ Configurable data and program memory.▪ Programming in Ladder Diagram, C, Structured Text, and Function Block Diagram.▪ Auto-located Symbolic Variables that can use any amount of user memory.▪ Support for Series 90-70 discrete and analog I/O, communications, and other modules. For a listof modules supported, refer to the PACSystems RX7i Installation Manual, GFK-2223.▪ Support for all VME modules supported by Series 90-70.▪ Rx7i data monitoring over the web. Allows a combined total of up to 16 web server and FTPconnections.▪ Up to 512 program blocks. Maximum size for a block is 128KB.▪ Test Edit mode that allows you to easily test modifications to a running program.▪ Bit-in-word referencing▪ Battery-backed calendar clock.▪ CPU and module firmware upgrades via Winloader through CPU’s RS-232 or RS-485 serial port.▪ Three isolated serial ports: an RS-485 serial port, an RS-232 serial port, and an RS-232 Ethernetstation manager serial port.▪ An embedded Ethernet interface with: Data exchange using Ethernet Global Data (EGD) TCP/IP communication services using SRTP Support for SRTP Channels, Modbus/TCP Server, and Modbus/TCP Client Full programming and configuration services Comprehensive station management and diagnostic tools Two full-duplex 10BaseT/100BaseT/TX (RJ-45 Connector) ports with an internal networkswitch providing auto-negotiated network speed, duplex mode, and crossover detection. User-configurable Redundant IP address Time synchronization to SNTP time server on Ethernet network (when used with Release5.00 or later CPU module).

Service contact information]
Procurement consultation hotline: 17759635229 (same WeChat account) QQ: 2306444920
Email: 2306444920@qq.com
Contact person: Mr. Wu
Company: Guizhou Yuanmiao Automation Equipment Co., Ltd
Address: Hongshan Hotel, No. 42 Hongshanhu Road, North Street, Xixiu District, Anshun City, Guizhou Province (No. 9, 14th Floor, Bailing Hilton Yilin Hotel)
24-hour email response (12 hours);
② If you want to ship to a country outside of Asia, please contact the seller.

One year warranty and after-sales discounts
The company focuses on four major systems: DCS, PLC, robotics, and large servo systems
The main products include various modules/cards, controllers, touch screens, and servo drives
Company advantage: Supply imported original products and specialize in producing accessories
Fast delivery time, complete supply, and seller’s inventory of industrial control products worth over 12 million US dollars
We can transport to the world!!!
