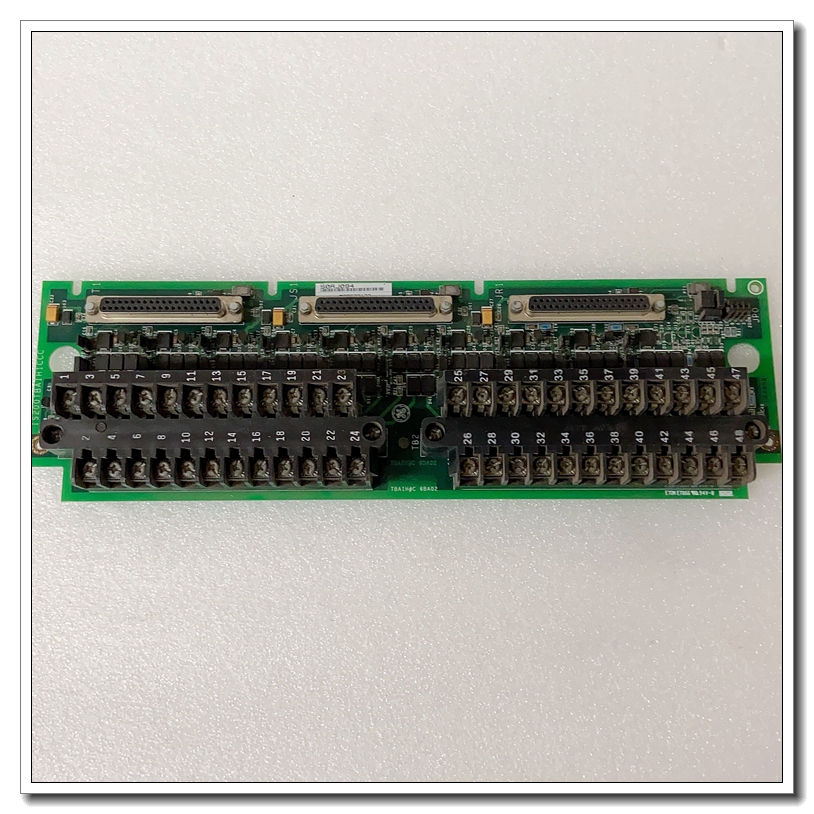

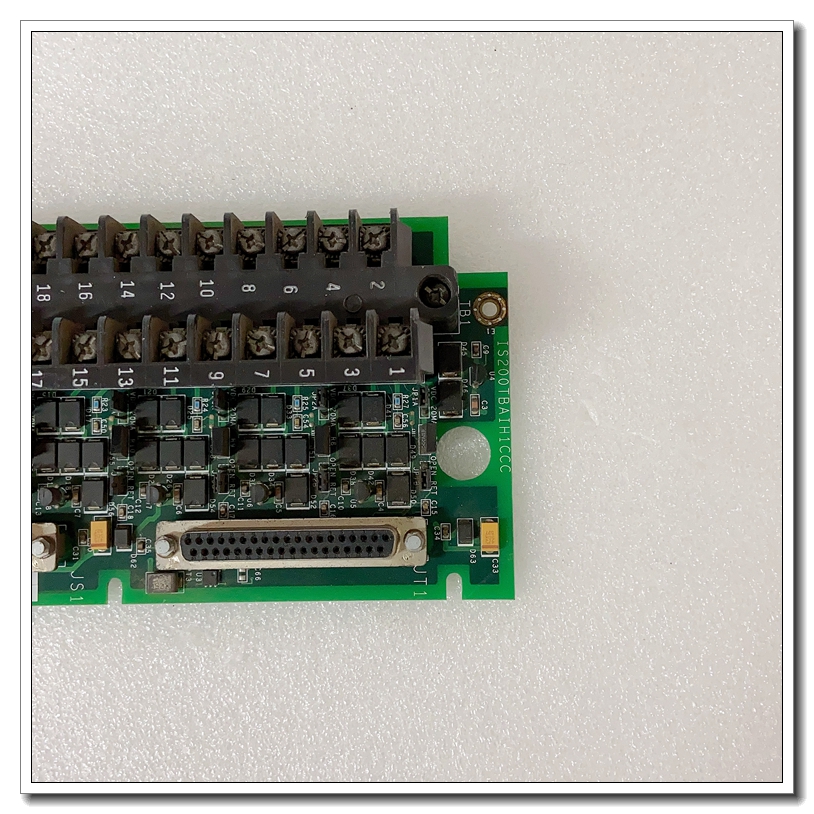

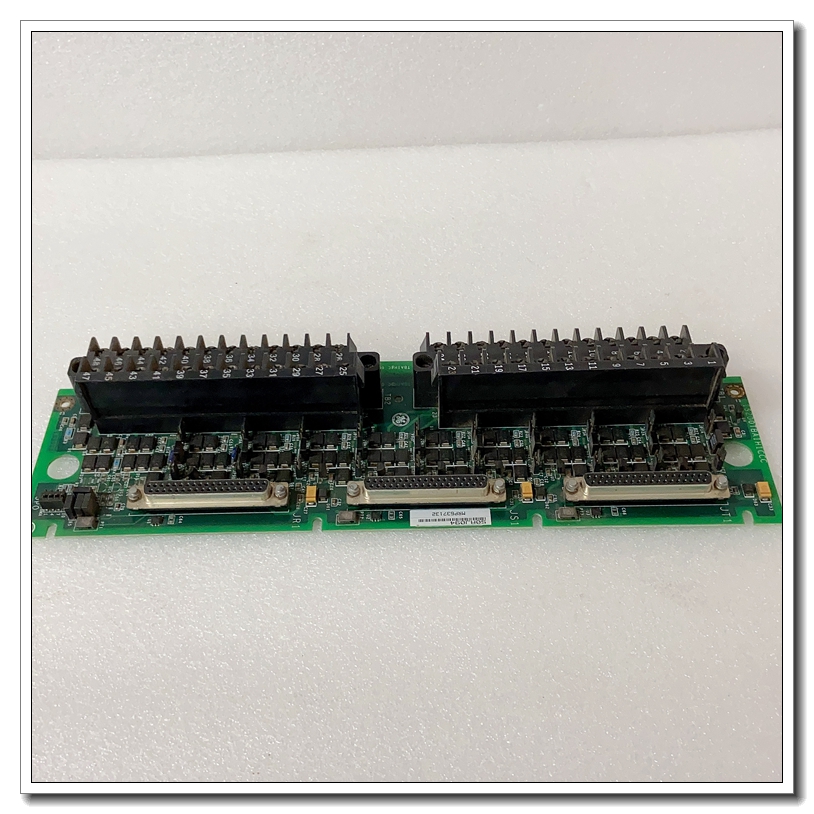

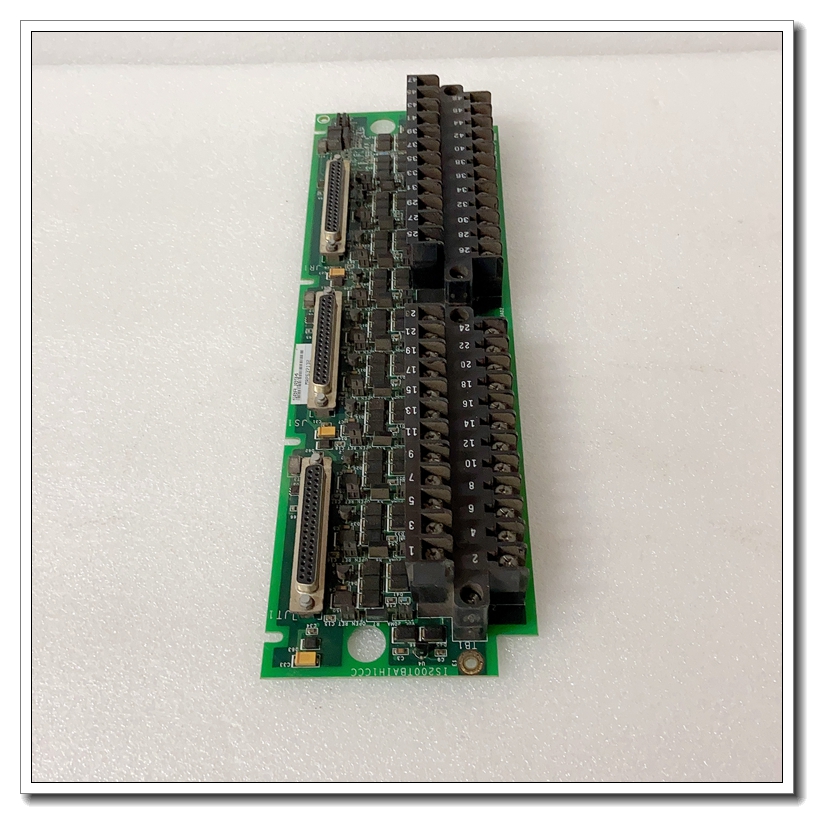

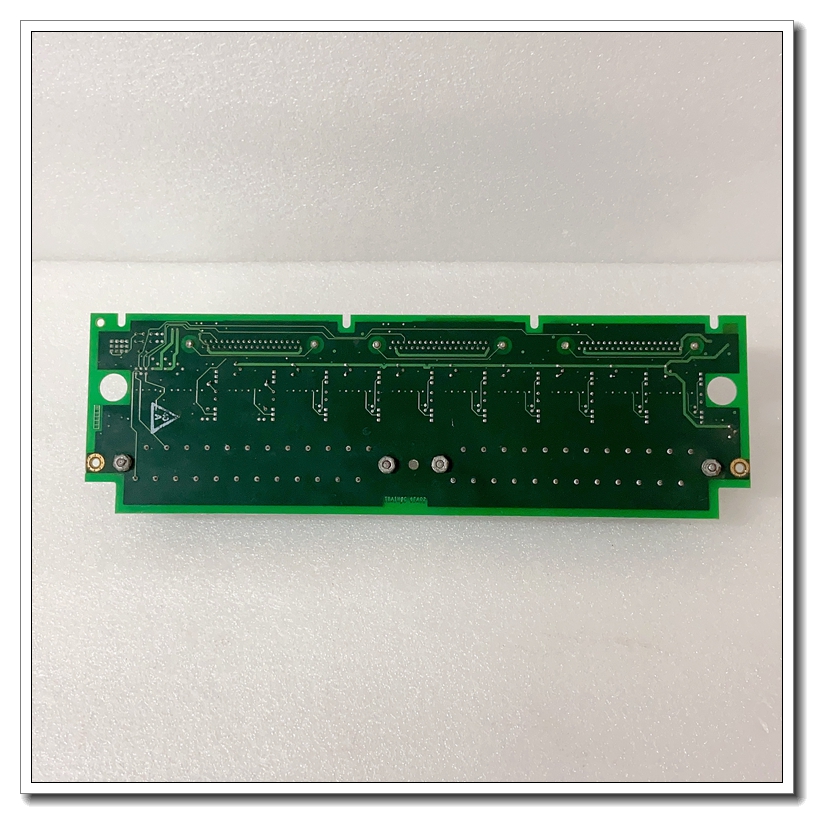

GE IS200TBAIH1C module

Description

GE IS200TBAIH1C is a redundant fault-tolerant control system solution based on TRICON Triple Modular Redundancy (TMR) structure. The system has three main processors, and all I/O signals are designed to be triple. Through hardware’s two out of three voting processing, the system ensures redundancy and fault tolerance. Each main processor has a 32-bit CPU and operates in a 3-2-1-0 mode. This control system is suitable for emergency parking protection systems of various scales.

In addition, the GE IS200TBAIH1C also includes other hardware devices, such as IC2ALG261, which is an 8-channel 15 bit input module of the GE Fanuc Versamax series. This analog input module provides an interface for 8 differential voltage inputs and is powered by a backplane power supply. The external power operation of this module has specific characteristics, including 25VAC continuous input logic, LED indicator lights and 5V output, and a backplane current consumption of 2mA.
