GE IS220PDIOH1A I/O package module

Description

GE IS220PDIOH1A is an I/O package module used for Mark VIe Speedtronic systems. It has two Ethernet ports and its own local processor. This module can be used in conjunction with IS200TDBSH2A and IS200TDBTH2A terminal boards and has been approved for use in hazardous areas.

The minimum rated voltage of GE IS220PDIOH1A is 27.4 VDC and the rated voltage is 28.0 volts DC. When operating the device, specific on-site wiring instructions must be followed, including wire size and screw torque, which can be found in the General Electric Manual related to the device, such as GEH-6725.

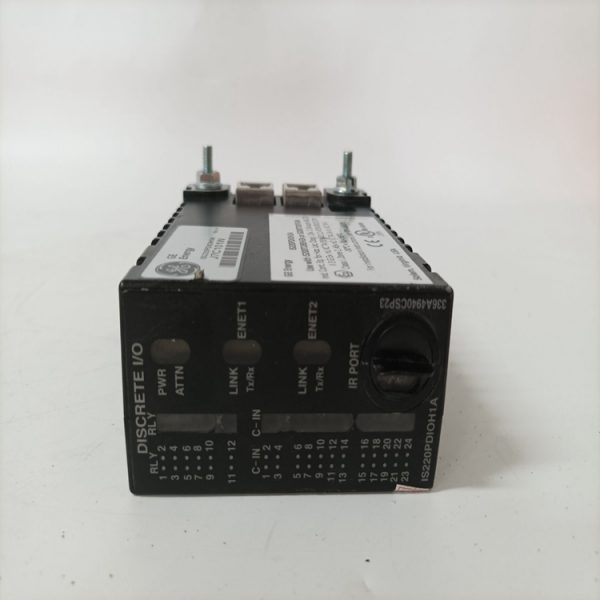

The front panel of this module includes two Ethernet port LED indicators, device power indicator lights, and an “Attn” LED indicator light, with additional LEDs associated with relay connections.

Overall, GE IS220PDIOH1A is a fully functional and reliable I/O package module suitable for various industrial automation and process control fields.
