IS200ACLEH1BCB Modular

Description

IS200ACLEH1BCB Technical Specifications
Model Number IS200ACLEH1BCB
Revision BCB
OEM GE Energy
Board Type Modular with Faceplate
Placement Rack Card
Product Description
The IS200ACLEH1BCB was a General Electric PCB (the Mark VI) shipped to be used in the detailed management of steam and gas powered turbines The Mark VI was a part of the multi deck long running Speedtronic product that was craft by GE. The Speedtronic series went through quite a few forms, opening with the Mark I which distributed in 1969 The Mark VI includes things like a PC based operator interface which was loaded with brand exclusive software such as CIMPLITY graphics and the GE Control System Toolbox (which was used for keep)

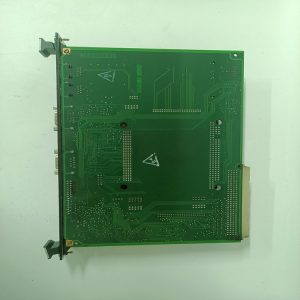

The IS200ACLEH1BCB has a thin faceplate which displays the printed GE logo and the board ID number Multiple board accessories were mounted to a single edge of the faceplate This includes multi pin connectors The board, itself, was also marketed with an identification number and the manufacturing logo It displayed the code 6BA01 along one edge of the device Components tend to be identified by reference numbers

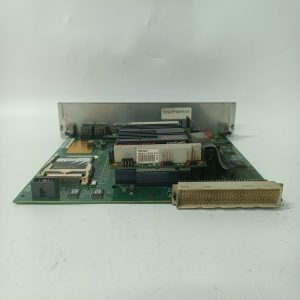

The IS200ACLEH1BCB has many board connections, including a vertical male pin in the upper right corner, a backplane connector located on the posterior edge on the board, and a multi pin ribbon cable connector The ribbon connections are linked to a secondary board which populated most of the center on the board This secondary board has a few components, which includes multiple pins integrated circuits and connectors The principal board had an IDE to SATA converter that held a 128 MB memory card
